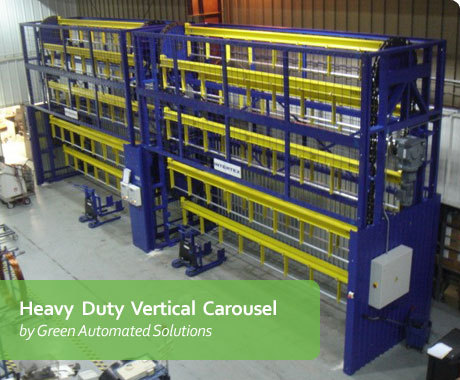

Heavy-duty and customizable, the ideal storage solution for some of the most challenging and bulky items such as pipes, long profiles, sheet metal, wire baskets or palletized loads. Utilizing the full ceiling height of your facility and eliminating handling equipment aisles, there is no better way to maximize storage space in the smallest possible footprint. For every payload this lift automatically delivers to your workers, it brings with it increased efficiencies and productivity.
Features
- Gantry crane, bridge crane, or monorail crane can be installed directly on to carousel
- Carrier inserts can store small parts or short goods along with other profiles
- Reversible dives allow for shortest path of retrieval
- Controls range from simple up and down buttons to electronic selection
- Modular design allows for expansion
- Can be configured to utilize overhead space
Specifications
| Maximum Carrier Payload | 3000 lbs |
| Maximum Module Payload | As per design |
| Maximum Module Height | 60 feet |
| Minimum Module Height | 10 feet |
| Maximum Carriers Per Module | As per design |
| Maximum Carrier Size | Width up to 30 feet |
| Maximum Imbalance | 60% |
| Power Requirement | 480 Volt AC |
| Extractor Chain Safety Factor | 10:1 |
Applications
Many industries can benefit from the increased storage-capacity, security and productivity the Heavy Duty Vertical Carousel offers.
