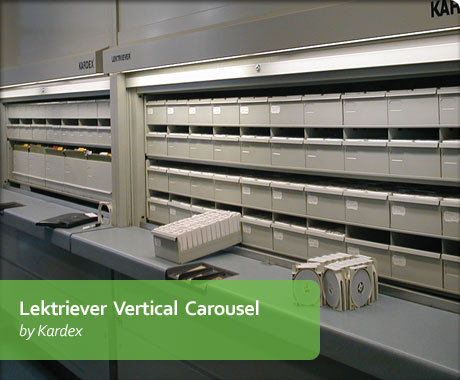

The days of storing records, files and documents in standard filling cabinets is over, due in large part to the thousands of Lektrievers in use around the world. Files are stored utilizing the full floor to ceiling vertical height saving as much as 90% of valuable space over traditional systems. Secure, fully automated, computer controlled and accessible from a standing or sitting position, this system delivers necessary documents to your office personnel in seconds, so they can get down to business.
Features
- Electronic Controls are easily accessible from the front and are equipped with EMI filters for protection against static.
- Included at no additional charge, the built-in fluorescent lighting system is activated automatically when the "On" key is pressed.
- A redundant safety system of upper and lower infrared beams and upper and lower mechanical safety bars prevents damage to stored items. Safety beams are tested and verified each time the machine is turned on.
- Optional powered door can be set to open automatically when the unit is started.
- A key lock is standard on both powered and pull down doors.
- The system moves directly to the selected carrier when started, with no cycling or installation time required.
- Lektriever 2000™ is available in heights of 8', 9', 10', 11' and 12' and in widths of 47", 77", 102", 116" and 130".
- Lektrievers exclusive operator console is the only standard-priced control system in the industry offering a two line informational display. When interfaced with a PC, the display identifies the next file or item to be removed or replaced.
- When any of the safety systems are activated causing the machine to stop, the console displays a text message identifying the safety breach.
- Unlike other systems in which imbalance occurs without warning Lektriever prevents the possibility of carrier imbalance by providing text and audible warnings when the unit reaches 80% of capacity. The console will automatically display the range of carriers requiring weight adjustment.
Specifications
| Unit Capacity | |||||||
|---|---|---|---|---|---|---|---|
| mode of filing | filing capacity per carrier | 14 Carriers (8' High) | 16 Carriers (9' High | 18 Carriers (10' High) | 22 Carriers (12' High | ||
|
Letter
(8.5" x 11") |
77" | Lateral | 62.5 LFI | 875 LFI | 1000 LFI | 1125 LFI | 1375 LFI |
| 102" | Lateral | 88.1 LFI | 1234 LFI | 1410 LFI | 1586 LFI | 1938 LFI | |
| 116" | Lateral | 101.5 LFI | 1421 LFI | 1624 LFI | 1827 LFI | 2233 LFI | |
| 130" | Lateral | 116.8 LFI | 1635 LFI | 1869 LFI | 2102 LFI | 2570 LFI | |
|
Legal
(8.5" x 14") |
77" | Lateral | 62.5 LFI | 875 LFI | 1000 LFI | 1125 LFI | 1375 LFI |
| 102" | Lateral | 88.1 LFI | 1234 LFI | 1410 LFI | 1586 LFI | 1938 LFI | |
| 116" | Lateral | 101.5 LFI | 1421 LFI | 1624 LFI | 1827 LFI | 2233 LFI | |
| 130" | 130" | 116.8 LFI | 1635 LFI | 1869 LFI | 2102 LFI | 2570 LFI | |
|
Letter
(8.5" x 11") |
77" | Tray | 71.5 LFI | 1001 LFI | 1144 LFI | 1287 LFI | 1573 LFI |
| 102" | Tray | 100.0 LFI | 1400 LFI | 1600 LFI | 1800 LFI | 2200 LFI | |
| 116" | Tray | 114.3 LFI | 1600 LFI | 1829 LFI | 2057 LFI | 2515 LFI | |
| 130" | Tray | 128.6 LFI | 1800 LFI | 2058 LFI | 2315 LFI | 2829 LFI | |
|
Legal
(8.5" x 14") |
77" | Tray | 57.2 LFI | 801 LFI | 915 LFI | 1030 LFI | 1258 LFI |
| 102" | Tray | 71.5 LFI | 1001 LFI | 1144 LFI | 1287 LFI | 1573 LFI | |
| 116" | Tray | 85.8 LFI | 1201 LFI | 1373 LFI | 1544 LFI | 1888 LFI | |
| 130" | Tray | 100.0 LFI | 1400 LFI | 1600 LFI | 1800 LFI | 2200 LFI | |
|
Hanging Letter
(8.5" x 11") |
77" | Tray | 57.2 LFI | 801 LFI | 915 LFI | 1030 LFI | 1258 LFI |
| 102" | Tray | 85.8 LFI | 1201 LFI | 1373 LFI | 1544 LFI | 1888 LFI | |
|
Hanging Legal
(8.5" x 14") |
77" | Tray | 42.9 LFI | 601 LFI | 686 LFI | 772 LFI | 944 LFI |
| 102" | Tray | 71.5 LFI | 1001 LFI | 1144 LFI | 1287 LFI | 1573 LFI | |
|
8 23/32" x 3 1/2
Check Tray Double Tiered Carrier |
77" | Tray | 174.5 LFI | 2443 LFI | 2792 LFI | 3141 LFI | 3839 LFI |
| 102" | Tray | 261.7 LFI | 3664 LFI | 4187 LFI | 4711 LFI | 5757 LFI | |
|
8" x 8",
8" x 9 Fingerprint Tray |
77" | Tray | 101.8 LFI | 1425 LFI | 1629 LFI | 1832 LFI | 2240 LFI |
| 102" | Tray | 145.4 LFI | 2036 LFI | 2326 LFI | 2617 LFI | 3199 LFI | |
Applications
Many industries can benefit from the increased storage-capacity, security and productivity the Lektriever offers.
