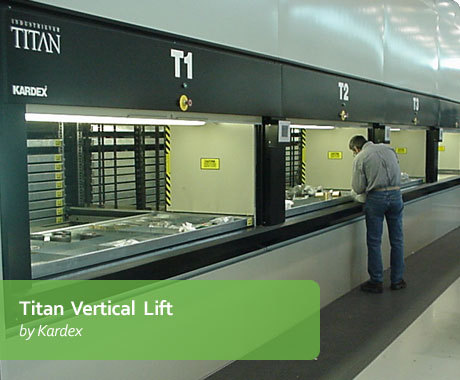

One of Green Automated Solutions' heavy duty vertical lift machines handles your heaviest storage jobs with strength, reliability and speed. These machines come in heights up to 40 feet and can handle up to 1200 pounds per pan. The Titan is one brawny machine, but it also has a brain. These machines come standard with a Siemens Programmable Logic Control System. The Siemens PLC can link multiple machines together and interfaces with any take away device. There is no smarter, stronger, and better balanced machine in the industry today.
Features
- High-strength, channel steel construction provides all necessary structural integrity for the unit.
- User-friendly, industry standard Siemens Programmable Logic Control (PLC) system offers the most advanced technology available on the market today.
- Tab and slot frame design
- Ground-level service door
- Save up to 75% of Floor Space
- Increase Productivity
- Maximize Pick Accuracy
- Improved Security
- Ergonomic Enhancement
- Software Integration
- Numerous Options
- Made in the USA
Specifications
| Maximum Pan Payload | 600 lbs/90.7 kg |
| Maximum Module Payload | 60,000 lbs / 21,216 kg |
| Maximum Module Height | 41 ft / 12.4 m |
| Minimum Module Height | 10 ft / 3.05 m |
| Maximum Pans Per Module | 293 |
| Maximum Pan Size | 100 x 32 in / 2,540 x 813 mm |
| Minimum Pan Size | 36 x 32 in / 914 x 813 mm |
| Maximum Pan Spacing | 30 in / 762 mm |
| Minimum Pan Spacing | 3 in / 76.2 mm |
| Maximum Imbalance | Load N/A |
| Vertical Travel Speed | 150 ft per min / 45 m per min |
| Power Requirement | 460 VAC, 3-Phase, 20 amp |
| Motor Size / Type | 5 HP/AC |
| Extractor Chain Safety Factor | 30:1 |
| System Expandability | Unlimited |
| Control System | P.L.C. |
Applications
- Tools
- Heavy instruments
- Heavy parts
- WIP (work-in-progress)
- Tooling and die storage
- Clean room product storage
- Any item up to 600lbs.
